MVF

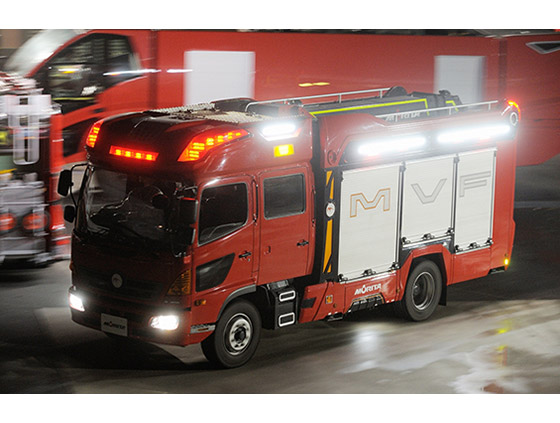

MVF (Morita Various Fighter)/ Multi-Purpose Fire Fighting Vehicle with 13m Aerial Platform
Product Outline

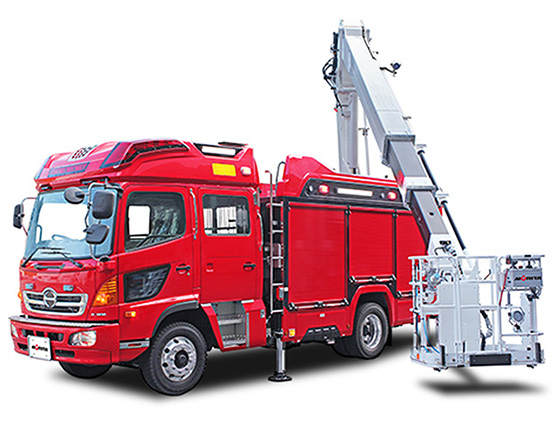

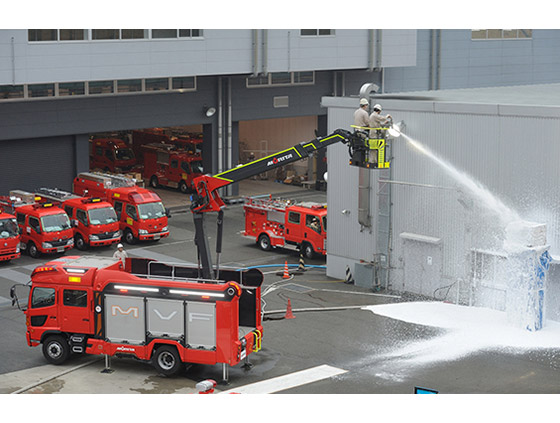

MVF is a brand new developed multi purpose fire fighting truck with 13m height articulated boom.

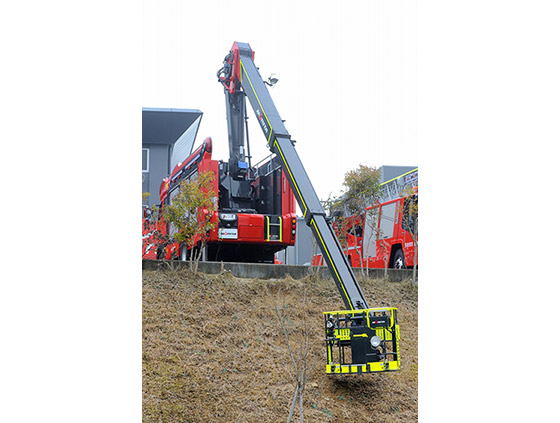

The MVF serves performance of fire fighting and rescue. The boom reaches 13m height equals 5th floor of buildings, also it can reaches minus 2.1m.

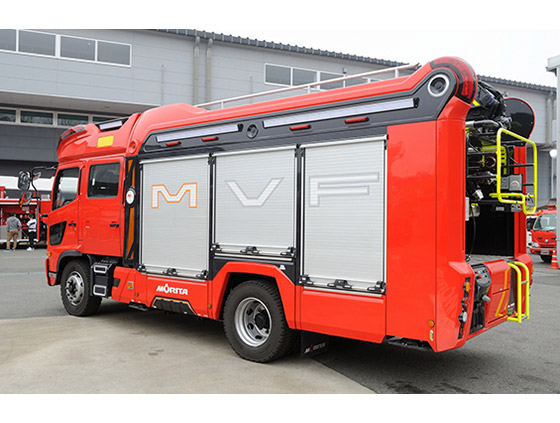

1200L water tank and CAFS devices, large locker compartment layouts enables various range of fire fighting and rescue.
*Please note that the actual product may differ from the image shown.
Product SPEC
The specification is for Japanese domestic market only.
Please scroll sideways to view.
| Model | MVF |
|---|---|
| Rescue Height | 13.7m |

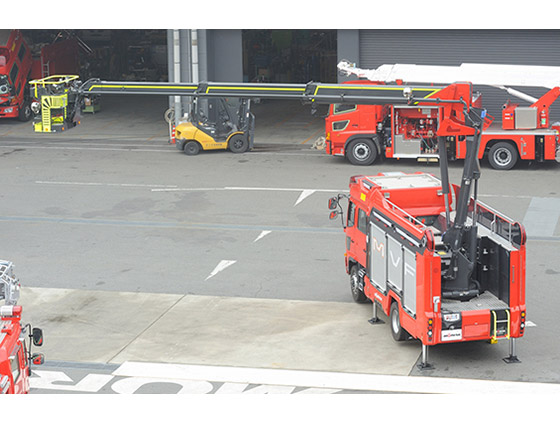

| Max. Working Radius | 8.4m |
| Capa. Basket | Max. 2700N |
| Jack/Outrigger | H type |
| Leveling system | By Jack cylinders |
| Boom structure | 1 articulated section with 3 telescopic sections |
| Basket Monitor | Manual operated 700LPM |

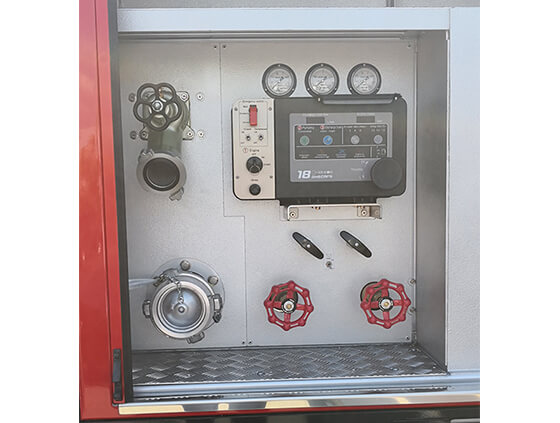

| Fire System | 18 UnitCAFS |
The specification is subject to change without notice.
