ALTESIMO
Product Outline
The stored-pressure powder fire extinguisher "ALTESIMO" has an aluminum body, featuring rustproof and higher safety. This next-generation type is lighter than the existing steel fire extinguishers by 20 to 27 percent in total weight.
Easy to use for all
Weight reduction has been achieved by using aluminum in the container. Universal design has been introduced to make the product user friendly.
The product label uses fonts and colors that can be easily recognized by all.
Reliability - the magnitude of security
ALTESIMO is a stored-pressure powder extinguisher. With pressurized nitrogen gas kept inside, the container never suffers from an abrupt pressure when the extinguisher is operated, ensuring safety.
A new standard of aesthetic design
Taking advantage of the aluminum texture, the body is painted in metallic colors to be weatherproof and resistant to corrosion.
What does ALTESIMO mean?
ALTESIMO is a word coined from aluminum and the music word "fortissimo" (loudest possible).

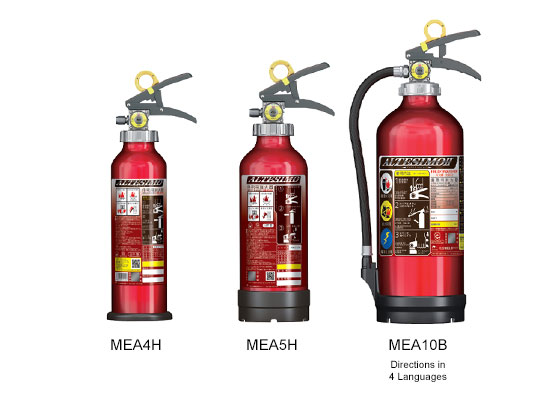

*Please note that the actual product may differ from the image shown.
Product SPEC
Please scroll sideways to view.
Product name | Home-Use Aluminum Stored-Pressure Powder Fire Extinguisher (Type 4) ALTESIMO MEA4H | Home-Use Aluminum Stored-Pressure Powder Fire Extinguisher (Type 5) ALTESIMO MEA5H | Industrial Aluminum Stored-Pressure Powder Fire Extinguisher (Type 10) ALTESIMO MEA10B |
---|---|---|---|
Model | MEA4H | MEA5H | MEA10B |
Gross weight (Approx.) |
1.9kg | 2.2kg | 3.9kg |
Weight of chemicals | ABC powder 1.2 kg | ABC powder 1.5 kg | ABC powder 3.0 kg |
Total height (Approx.) |
390mm | 390mm | 440mm |
Shell diameter (Approx.) |
88mm | 102mm | 127mm |
Maximum width (Approx.) |
145mm | 145mm | 200mm |
Discharge time (Approx.) |
16sec. (at 20℃) | 18sec. (at 20℃) | 14sec. (at 20℃) |
Radiation circle | 3-5m (at 20℃) | 4-6m (at 20℃) | 3-6m (at 20℃) |
Temp. range | -30 to +40℃ | -30 to +40℃ | -30 to +40℃ |
Fire rating (Japan) | - | - | A-3, B-7, C |
The specification is subject to change without notice.
