Rotary Dump Garbage Truck Pack Master™
Product Outline

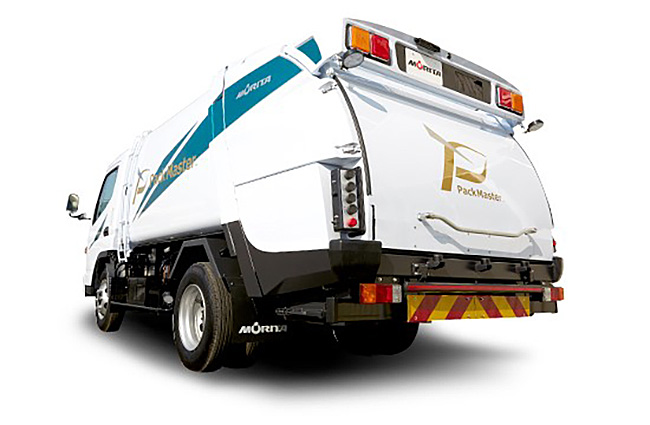

Rotary garbage truck "Pack Master™" with reliability and track record
The loading mechanism has been improved to achieve a higher loading capacity (than our company's products).
The new model is packed with features for higher operability, maintenance ability and safety as follows.
Tailgate side protectors with which the driver can easily recognize the rear end of the vehicle during backward rolling, ensuring higher safety. Wastewater tank with a large opening to be closed with a cover whose to-and-fro direction of opening/closing can be changed for easier cleaning.
Bucket garbage scraper to remove any garbage left in the bucket from the driver's seat during discharge.
* The vehicles shown in the pictures include optional components.
* Please note that the actual product may differ from the pictures shown.
Product SPEC
Please scroll sideways to view.
Applicable chassis | Compact vehicle (2 tons) | Compact wide vehicle (3.5-4 tons) | Medium-size vehicle (4 tons) | |
---|---|---|---|---|
Model | KA752D | KA768D | KB782D | |
Loading type | Rotating plate type | |||
Vehicle dimensions | Overall length(mm) | Approx. 5,190-5,310 | Approx. 5,710-5,800 | Approx. 6,290-6,450 |
Overall width(mm) | Approx. 1,850 | Approx. 2,080 | Approx. 2,220 | |
Overall height(mm) | Approx. 2,160-2,190 | Approx. 2,290-2,350 | Approx. 2,600-2,700 | |
Packer capacity(㎥) | 5.2 | 6.8 | 8.2 | |
Tailgate capacity(㎥) | 0.29 | 0.34 | 0.42 | |
Packer internal dimensions | Length(mm) | 2,610 | 2,925 | 3,110 |
Width(mm) | 1,785 | 2,000 | 1,975 | |
Height(mm) | 1,225 | 1,280 | 1,495 | |
Tailgate dimensions | Width(mm) | 1,430 | 1,650 | 1,680 |
Height(mm) | Approx. 800 | Approx. 800 | Approx. 840 | |
Tailgate ground height (mm) | Approx. 690-700 | Approx. 740-800 | Approx. 730-830 | |
Loading time (sec./cycle) | 10-13 | |||

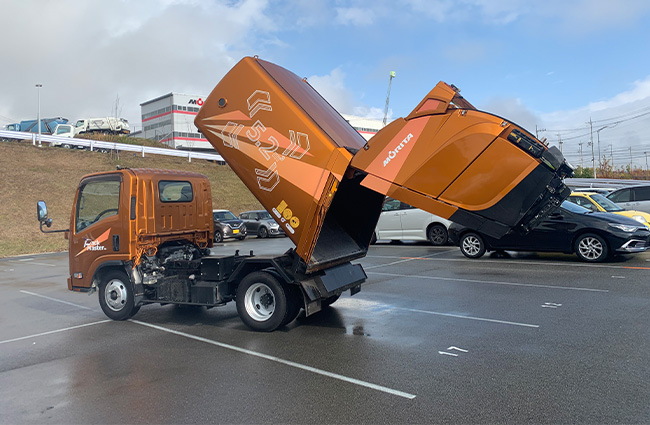

Discharge type | Dump type | |||
Discharge time (sec.) | Approx. 15 | Approx. 20 | ||
Wastewater tank capacity (L) | 83 | 96 | 122 |
* Specifications are subject to change depending on the chassis model and optional specifications.
