SPRINEX mini

Packaged Automatic Fire Extinguishing System

Product Outline

Recommended for facilities with an area smaller than 130㎡
Addressing the problems of conventional aqueduct-connection type sprinkler systems for specific facilities!

SPRINEX mini is particularly useful against initial fires, as it can sense a fire in its early stage and automatically extinguish it instantly. SPRINEX mini is an automatic fire extinguishing system that is less of a burden on its installing facilities in comparison with conventional aqueduct-connection type sprinkler systems for specific facilities.

Advantages of "SPRINEX mini"

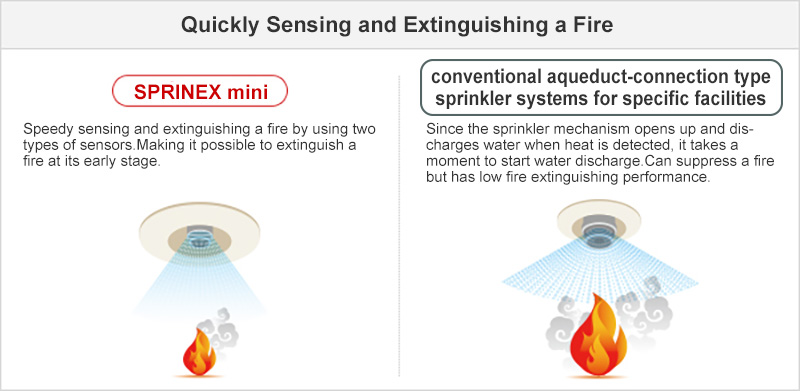

Quickly Sensing and Extinguishing a Fire_SPRINEX: Speedy fire sensing and extinguishment, making it possible to extinguish a fire at its early stage._Sprinkler: Since the sprinkler mechanism opens up and discharges water when heat is detected, it takes a moment to start water discharge.Can suppress a fire but has low fire extinguishing performance.

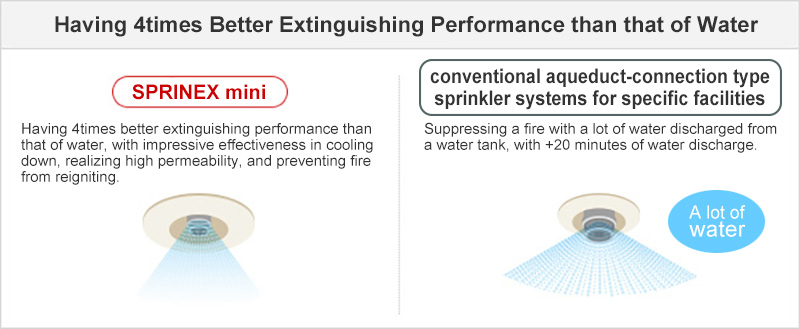

Fire Extinguishing Performance_SPRINEX: Having 4times better extinguishing performance than that of water, with impressive effectiveness in cooling down, realizing high permeability, and preventing fire from reigniting._Sprinkler: Suppressing a fire with a lot of water discharged from a water tank, with +20 minutes of water discharge.

Flexible Installation_SPRINEX: Giving you peace of mind even during a water outage as the fire extinguishing fluid is stored within the system, and can extinguish a fire even during a power outage since it is lithium-battery powered._Sprinkler: Using a water supply and an external power source, which makes it unable to operate during a water outage or power outage or when water is frozen (*).
* In the case of a wet sprinkler system

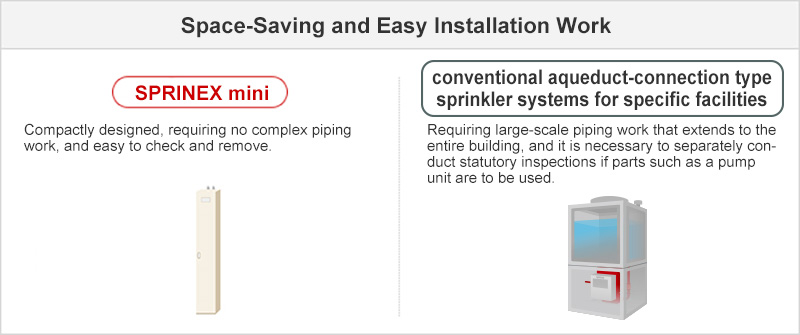

Space-Saving and Easy Installation Work_SPRINEX: Compactly designed, requiring no complex piping work, and easy to check and remove._Sprinkler: Requiring large-scale piping work that extends to the entire building, and it is necessary to separately conduct statutory inspections if parts such as a pump unit are to be used.

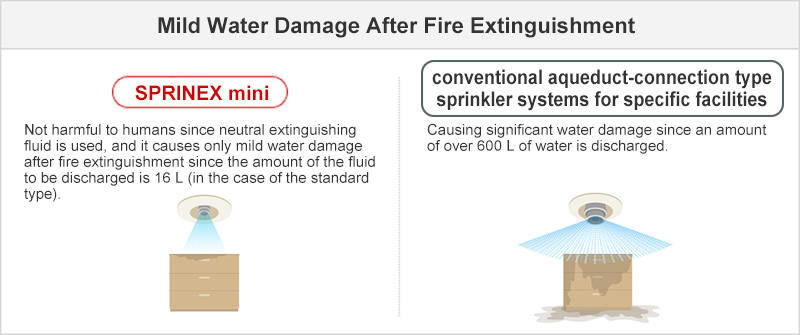

Mild Water Damage After Fire Extinguishment_SPRINEX: Not harmful to humans since neutral extinguishing fluid is used, and it causes only mild water damage after fire extinguishment since the amount of the fluid to be discharged is 16 L (in the case of the standard type)._Sprinkler: Causing significant water damage since an amount of over 600 L of water is discharged.

Product SPEC

Please scroll sideways to view.

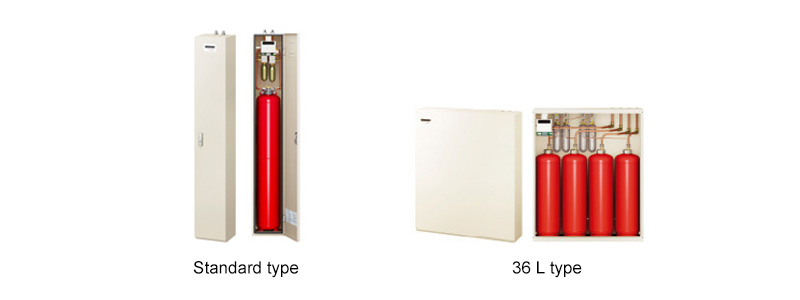

  CPW13161B CPW13094
Model Packaged Automatic Fire Extinguishing System
Protective coverage  13㎡ (equivalent to an 8 tatami-mat room)
Extinguishing agent Class III water with wetting agent
Fluid capacity  16L (16L x 1) 36L (9L x 4)
Service temperature range 0 to +40℃
Discharge time approx. 31 seconds (at 20℃) approx. 28 seconds (at 20℃)
Connected copper pipes φ10mm (maximum length: 10m) φ12mm (maximum length: 10m)
Sensor 2 sensors with different detection methods (certified under national standards)
Housing dimensions (mm) H1,400 x W230 x D205 H830 x W734 x D195
Total weight approx. 42kg approx. 87kg

The specification is subject to change without notice.
