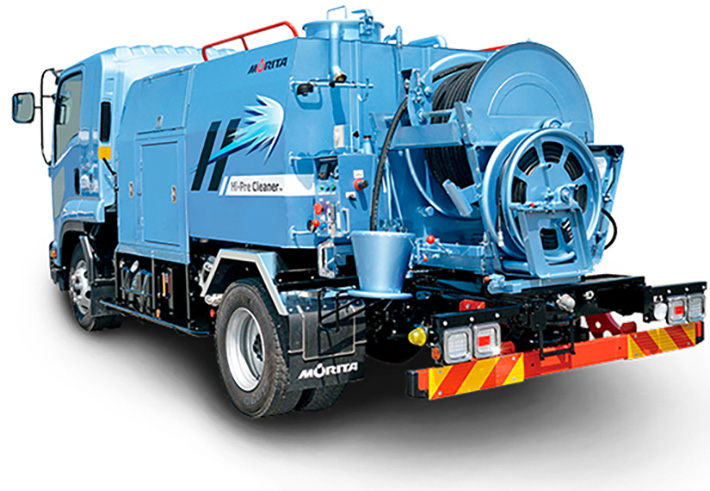

High-pressure Cleaning Vehicle Hi-Pre Cleaner™
Product Outline
High power cleaner™ suitable for cleaning, peeling or removing work
Hi-pre Cleaner™ injects high pressure water from the tip of its high pressure water hose to peel off deposit and condensate on the internal surface of sewage and domestic wastewater piping whose drainage function has degraded.
The core of Hi-pre Cleaner™ is a combination of a ceramic made plunger and a plunger pump with a combined suction and discharge valve mechanism. The equipment features space saving and light weight as well as excellent durability and maintenance ability.
The discharge line supports a variety of nozzles and piping of various shapes and sizes.
With an optional gun nozzle fitted, Hi-pre Cleaner™ can be used for even wider application including wall or floor cleaning, paint film peeling, bark stripping and shell removal from hulls.
*Please note that the actual product may differ from the pictures shown.
Product SPEC
Please scroll sideways to view.
Vehicle dimensions | Overall length (mm) | Approx. 5,960~6,150 | |
---|---|---|---|
Overall width (mm) | Approx. 2,200 | ||
Overall height (mm) | Approx. 2,500 | ||
Maximum number of passengers | 2 persons | ||
Tank | Capacity | 2,900L | |
Maximum payload | 2,620~2,710kg | ||
Plunger pump | Model | HS-420MPL-3TZ | HS-423MPL-4TZ |
Maximum pressure MPa (kg/㎠) | 19.6MPa | 22.6MPa | |
(200kg/㎠) | (230kg/㎠) | ||
Discharge(L/min) | 230 | 200 |
The specification is subject to change without notice.
