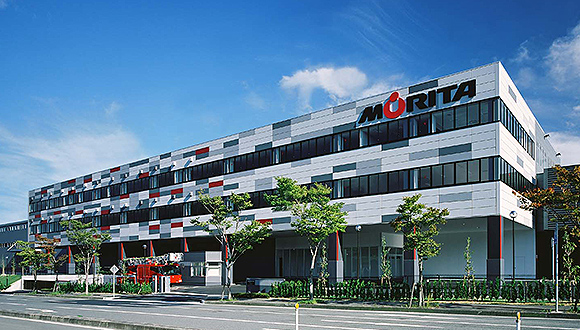

Introducing Sanda Factory

Introducing Sanda Factory

More than a half of the fire trucks currently deployed in Japan were manufactured at our Sanda Factory. Sanda Factory, equipped with the state-of-the-art machineries, is one of the largest fire trucks factories in Asia. The most sophisticated and high-end fire fighting and rescue vehicles, such as ladder trucks for high-rise rescue operations, "Miracle CAFS Cars" developed with cutting-edge fire fighting technology, the world's first ever Fire Fighting Ambulance (FFA), three-sides opening/closing REDSEAGULL designed to ease fire fighting in narrow areas, and many other conventional and next-generation fire trucks are manufactured here at Sanda Factory. Yearly production of more than 700 trucks ensures the supply of highly reliable fire trucks to domestic and overseas fire brigades.
Water discharge test facility equipped with a 10m deep-water tank and most advanced measurement and calculation systems. This facility allows testing of 10 trucks at a time.
We at the Morita Group continue to strive toward our future dreams under the spirit of 'Protecting Human Life and Mother Earth.'

  • Overview of Sanda Factory
Land area: 56,934m²
(East factory: 37,028m² West factory: 19,906m²)
Overview of Sanda Factory
Page Top

East Factory

East Factory

Test Courses

  • [Terrain Test Facility]
Simulates rough road to check and evaluate vehicle's quality and strength. It consists of two patterns of rough roads: one with even bumps and other with staggered swaying. The road stretches to 52 m and has 768 bumps of 130 mm in diameter and 50 mm in height.
Terrain Test Facility
  • [Gradeability Test Facility]
Two inclinations of 25% and 50% are available to test vehicle for 27 degrees gradeability. Climbing and parking brakes capabilities of a vehicle can be tested.
Gradeability Test Facility
  • [Tilt And Weight Tests Facility]
The tilt table allows testing a vehicle of overall length 9m, overall width 3.5m and maximum weight of 44t to a tilt of 40 degrees.
Tilt And Weight Tests Facility
  • [Discharge Range Test Facility]
Water and foam are discharged from a distance of 120m aiming a circle of 40m in diameter. Additionally, the used water is collected in a 100m3 underground tank and processed to prevent any adverse effects on the environment.
Discharge Range Test Facility
  • [Driving Test Facility]
Driving and braking performance of all trucks is tested on a specialized 200m course.
Driving Test Facility
Page Top

Manufacturing Flow of A Ladder Truck

  • 1. Arrival of the Chassis
The chassis arrives equipped only with the driving seat and engine.
Arrival of the Chassis
  • 2. Framework and Bodywork Mounting
The framework is fitted to the chassis, and then the main body section is fitted to the framework.
Framework and Bodywork Mounting
  • 3. Gyro Turntable and Support Frame Mounting
The gyro turntable, which swivels the ladder and automatically keeps it horizontal, is mounted first, and then the ladder support frame is installed.
Gyro Turntable and Support Frame Mounting
  • 4. Ladder Mounting
The ladder is then installed onto the truck.
Ladder Mounting
  • 5. Appraisal Examination
Once in-house inspections are complete, all trucks undergo rigorous inspections of external organizations.
Appraisal Examination
  • 6. Truck Complete

Truck Complete
